HollySys MC Motion Controller EtherCAT Servo Drive Pulse Bus

Designed for high-performance multi-axis automation demands, the HollySys MC motion controller series delivers precise servo drive and pulse bus coordination across diverse industrial machinery applications. Leveraging dual-core processing architecture and flexible communication interfaces, this motion controller series ensures optimal cycle synchronization and operational reliability.

The evolution of modern factory automation demands advanced motion control solutions capable of handling complex multi-axis interpolation, high-speed data sampling, and rigorous environmental conditions. Traditional architectures frequently encounter bandwidth bottlenecks and synchronization delays when managing distributed servo drives and pulse-train devices across extensive production lines. The HollySys MC series addresses these operational challenges by integrating high-performance ARM Cortex-A9 dual-core 667 MHz processors with dedicated 64-bit double-precision floating-point calculation capabilities. This architecture enables servo update intervals ranging from 0.25 ms to 4.0 ms, guaranteeing deterministic motion trajectories and minimal jitter. The hardware ecosystem supports comprehensive fieldbus protocols including EtherCAT and Panasonic RTEX, alongside traditional pulse-direction and analog outputs, providing system integrators with maximum flexibility for retrofitting or greenfield deployment. Furthermore, the inclusion of robust onboard digital and analog I/O channels, coupled with IEC 61131-3 compliance via Auto Think programming software, streamlines application development for sheet metal processing, semiconductor manufacturing, and robotics.

Technical Specifications

Maximum Axes: 64 axes @ System Level

Direct Axes: 4 axes @ MC2004

Bus Axes: 64 axes @ MC1002E

Processor: ARM Cortex-A9 Dual-Core 667 MHz @ CPU Core

Memory: 256 MB DDR3 SDRAM @ System Memory

Servo Update Cycle: 0.25 - 4 ms @ Real-Time Task

Position Calculation Precision: 64-bit Double-Precision Floating-Point @ Math Coprocessor

Flash Memory: 16 MB @ Non-Volatile Storage

SD Card Support: 32 GB FAT32 @ External Logging

Power-Down Retentive Area: 8 KB @ SRAM with Battery Backup

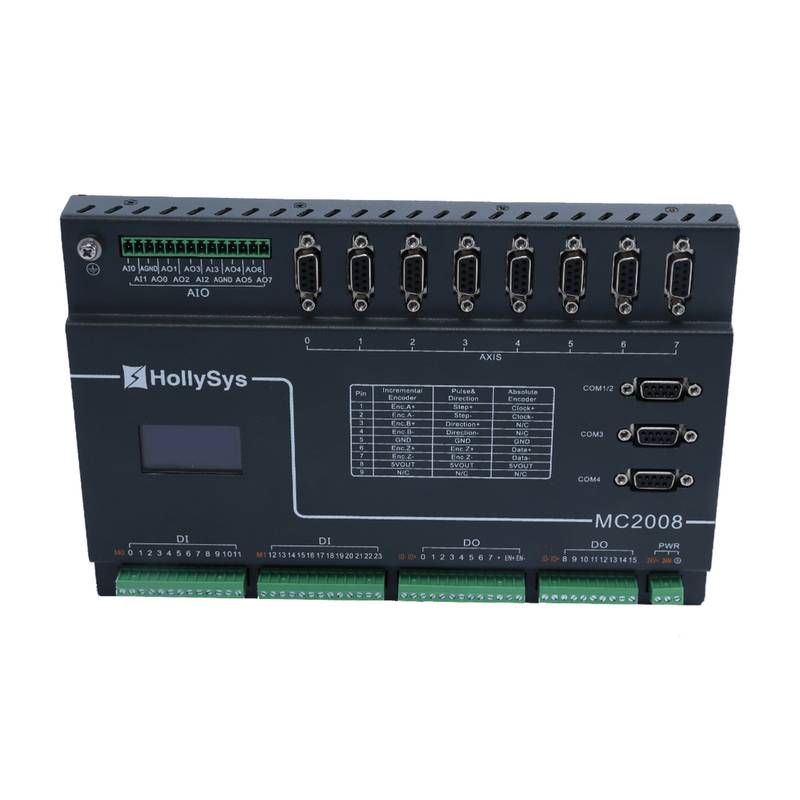

Encoder Input Channels: 8 channels @ MC2008

Pulse Output Frequency: 2 MHz @ High-Speed PTO

Ethernet Interface: 10 / 100 / 1000 Mbps Adaptive @ RJ45 Port

RS485 Serial Ports: 2 ports @ Modbus-RTU Master/Slave

CAN Bus Interface: CAN2.0B / CANopen @ Communication Port

Fast DI Channels: 8 channels @ 200 kHz

Fast DO Channels: 16 channels @ 200 kHz

Analog Input: 2 channels @ 0 - 10 V @ MC2004

Analog Output: 4 channels @ -10 V - 10 V @ MC2004

Dimensions (W x H x D): 246.0 x 164.4 x 43.2 mm @ MC2004

Weight: 1.6 kg @ Standard Chassis

Operating Temperature Range: 0 - 60 °C @ Industrial Environment

Rated Operating Voltage: 24 VDC @ Power Supply Input

System Integration and Hardware Setup

Proper mechanical mounting and electrical wiring are critical for establishing a stable industrial automation network utilizing the HollySys MC series. The controller should be securely installed onto standard DIN rails or via direct bracket mounting within a ventilated control cabinet to maintain optimal thermal management. Shielded twisted-pair cables must be utilized for all communication links, including EtherCAT, CANopen, and serial interfaces, to mitigate electromagnetic interference from nearby variable frequency drives and high-voltage power lines. Grounding practices require a low-impedance ground connection from the controller chassis to the main control panel ground bar, effectively preventing ground loops and signal corruption. When terminating power inputs at 24 VDC, verify polarity before energizing the system, and separate low-voltage signal wiring from high-power inductive load cables to ensure signal integrity across all high-speed pulse and encoder feedback channels.

Reliability and Environmental Durability

Designed for continuous operation in demanding industrial environments, the MC motion controller incorporates a wide temperature design capable of functioning reliably between 0 °C and 60 °C. The low-power architecture maintains a typical power dissipation below 5 W, minimizing internal thermal stress and enhancing component longevity. Critical operational parameters and historical production data are safely preserved within the power-down retentive memory area, supported by a built-in real-time clock for accurate event timestamping. Compliance with stringent CE certification standards underscores its electromagnetic compatibility and electrical safety under heavy industrial conditions. Routine maintenance involves checking terminal block tightness, inspecting cabinet air filters to prevent dust accumulation, and monitoring diagnostic LED indicators for real-time system health evaluation.

Selection Guidance and Alternative Options

Selecting the appropriate MC series variant depends heavily on the required axis count, bus topology, and specific feedback mechanisms of the target machine. For applications requiring traditional analog control or closed-loop pulse positioning, models such as the MC2004 and MC2008 offer extensive direct axis capabilities and high-speed I/O. For high-performance distributed networking, models like the MC1002E provide dedicated EtherCAT bus integration supporting up to 64 bus axes. Engineering teams seeking guidance on model cross-referencing, localized component stocking, or custom configuration support can consult with technical specialists at Beijing Zhongping Technology to streamline the procurement and system design process.
